Commell LV-681 (for AMD Mobile Turion/Sempron)

PRODUCT IS CURRENTLY NOT AVAILABLE !

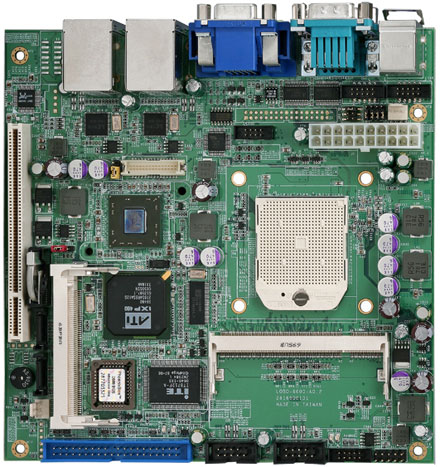

Commell LV-681 (for AMD Mobile Turion/Sempron)

That mainboard incorporates an AMD S1 processor socket compatible with AMD Turion 64x2 Dual-Core, AMD Turion 64, and Mobile AMD Sempron processors. it also implements the ATI RS485M Chipset with ATI Radeon X-300-based 2D/3D graphics engine, dual display. This high level integration that optimizes the design of high performance, low-power-consumption solutions for embedded products, including thin clients, gaming, kiosk, point-of-sale, and other graphics-centric embedded applications.

Scope of supply :
- LV-681 Mainboard
- Quick-Start-Guide, Drivers-CD
- CPU cooler
- IDE-cable
- SATA cable
- Serial port cable
- I/O Bracke
[more]

Share

CPU AMD S1
Graphics ATI RADEON X-300
Formfactor ITX (17x17cm)
RAM 2x SO-DDR-II
Audio Realtek ALC655 Codec
Base
USB 8x USB 2.0
Firewire --
IDE/SATA 1x IDE, 2x SATA
LAN 2x 10/100/1000
Parallel --
Serial 2x
no TV-Out
yes PCI
yes Mini-PCI
yes IDE
no DVI
no 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
no Compact Flash

That mainboard incorporates an AMD S1 processor socket compatible with AMD Turion 64x2 Dual-Core, AMD Turion 64, and Mobile AMD Sempron processors. it also implements the ATI RS485M Chipset with ATI Radeon X-300-based 2D/3D graphics engine, dual display. This high level integration that optimizes the design of high performance, low-power-consumption solutions for embedded products, including thin clients, gaming, kiosk, point-of-sale, and other graphics-centric embedded applications.

Scope of supply :
- LV-681 Mainboard
- Quick-Start-Guide, Drivers-CD
- CPU cooler
- IDE-cable
- SATA cable
- Serial port cable
- I/O Bracket


- Support AMD Mobile Turion 64 x2 / Sempron
- 2 x 200-pin SO-DIMM support DDRII up to 2.0 GB
- Standard Mini-ITX PC industrial embedded systems
- Integrated ATI RADEON X-300 based 2D/3D graphics engine
- Integrated ALC655 codec, 2 x Giga Ethernet interface.
- 2 x SATA interface , CompactFlash socket
- USB 2.0 , RS232 , LVDS interface
- Mini-PCI socket , IDE support 40-pin DOM
- Standard 20-pin ATX power supply




Form Factor
Mini-ITX Motherboard (170 x 170 mm)
CPU
support AMD Mobile Turion 64 / Sempro processor at 638-pin
Memory
2 x 200-pin DDRII 400/533 SO-DIMM socket supports up to 2GB
Chipset
ATI RS485M & ATI SB460
Enhanced IDE One UltraATA/100/133 IDE channel up to 2 ATAPI devices.
Onboard 1 x 40-pin IDE connector
VGA Interface
built-in ATI RADEON X-300 based 2D/3D graphics engine
LVDS Interface
Onboard 18-bit dual channel LVDS
Serial ATA Interface
2 x SATA interface with 150 MB/s transfer rate
Audio Interface
Realtek ALC655 Codec
LAN Interface
2 x Realtek RTL8111B Giga LAN
Extend Interface 1 x PCI slot & 1 x Min-PCI socket
External I/O Port
2 x serial port,
1 x PS/2 keyboard/Mouse,
4 x USB 2.0,
1 x Audio,
2 x RJ45 LAN
Internal I/O Port 2 x serial port,
1 x GPIO,
4 x USB 2.0,
1 x LVDS
Power Requirement
Standard 20-pin ATX power supply
Board Dimension 170mm x 170 mm (L x W)
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 3 ratings
5 von 5 Sternen from cuatrero75 am 11.08.2016

greetings I have some doubts about Article 1 still have in stock ?. 2 comes with dicipadores? 3- What is your warranty? 4 has the same problem the video chip that has the HP DV9000?

4 von 5 Sternen from kurtum am 09.05.2008 | See all my comments

Magnifica board para intalação com o AMD Turion 64 X2-Mobiltechnology TL-56, versatil e facil de intalar aqui tem um boa solução para que necessita de interface LVDS. suporta memória DDRII até 533 Mhz

5 von 5 Sternen from myrus am 28.01.2008 | See all my comments

excelent board for use whit AMD Mobile Turion 64 X2 TL-56. it has 2 so-dmm conector that suport 2gb main memory and a Min-PCI socket you can connect the Wireless LAN Mini-PCI (with aerial) sold here in car tft
