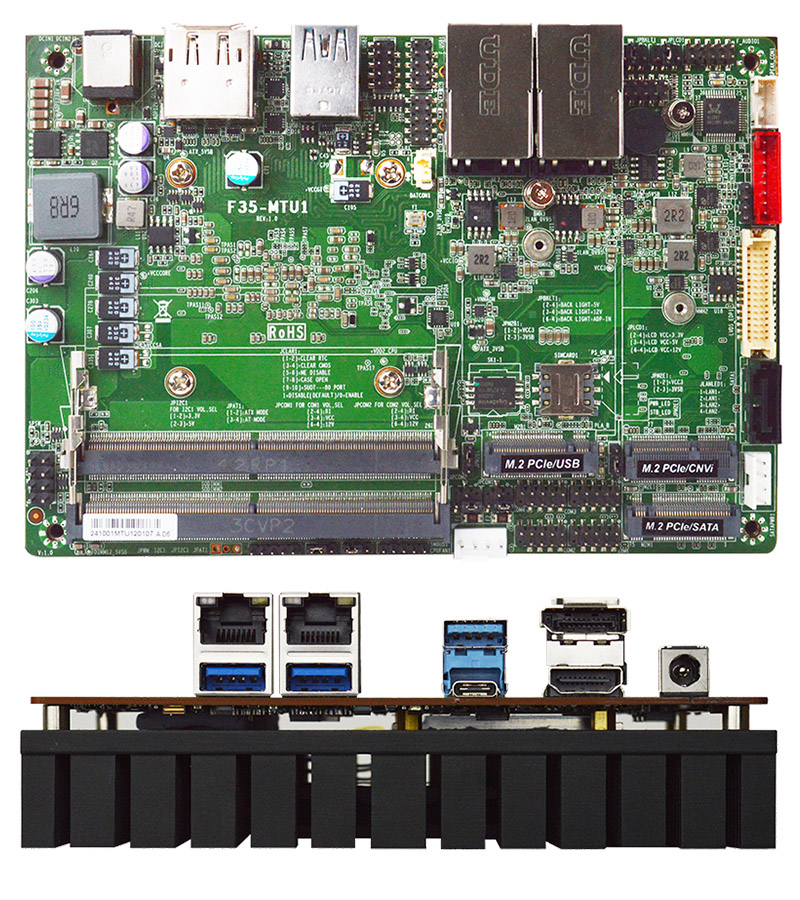

Jetway F35-MTU1-155U0010 3,5" SBC (Intel Core Ultra 7 155U, 2x LAN, 1x USB-C DP) [12-36V Power Input]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway F35-MTU1-155U0010 3,5" SBC (Intel Core <b>Ultra 7 155U</b>, 2x LAN, 1x USB-C DP) <b>[12-36V Power Input]</b>
  • Intel Core Ultra 7 !
  • 4-Display Support !
  • 12-36V Input !
  • 3,5" SBC !

  • Powered by Intel® Core™ Ultra SoC Processor (Meteor Lake): With integrated NPU for AI acceleration.
  • High-Performance Memory: 2x DDR5 5600MHz SO-DIMM, up to 96GB.
  • Dual Intel® 2.5GbE LAN: Supports TSN, Redundancy, and High-speed connectivity
  • Versatile 4-Display Support: 3x 4K outputs (DP Type-C, DP, HDMI) and 1x LVDS for flexible configurations (DP type-C colay USB3.2)
  • Storage and Expansion: 1x SATA III, 1x M.2 E-Key, 1x M.2 M-Key, 1x M.2 B-Key, and 1x Nano SIM slot.
  • Comprehensive I/O: 1x USB 3.2 Gen2x2, 3x USB 3.2 Gen 2, 4x USB 2.0, and 4x COM ports. (USB3.2 type-C colay DP)
  • Wide-Range DC Input: 12–36V for industrial [more]

    Share

RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:

  • Powered by Intel® Core™ Ultra SoC Processor (Meteor Lake): With integrated NPU for AI acceleration.
  • High-Performance Memory: 2x DDR5 5600MHz SO-DIMM, up to 96GB.
  • Dual Intel® 2.5GbE LAN: Supports TSN, Redundancy, and High-speed connectivity
  • Versatile 4-Display Support: 3x 4K outputs (DP Type-C, DP, HDMI) and 1x LVDS for flexible configurations (DP type-C colay USB3.2)
  • Storage and Expansion: 1x SATA III, 1x M.2 E-Key, 1x M.2 M-Key, 1x M.2 B-Key, and 1x Nano SIM slot.
  • Comprehensive I/O: 1x USB 3.2 Gen2x2, 3x USB 3.2 Gen 2, 4x USB 2.0, and 4x COM ports. (USB3.2 type-C colay DP)
  • Wide-Range DC Input: 12–36V for industrial applications.


SYSTEM
MB FORM FACTOR3.5"
CPUOnboard Intel® Core™ Ultra 7 Processor 155U (Formerly Meteor Lake, TDP 15W)
CHIPSETIntel® SoC
MEMORY2 x DDR5 5600MHz, Dual Channel SO-DIMM, up to 96GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYTPM2.0 (dTPM, Optional)
RTC BATTERYLithium Battery
DIMENSION (W X D)148.0 (W) x 102.0 (D) mm (5.8″ x 4.0″)
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12~36V
POWER ON MODEAT / ATX (Default) Mode
CONNECTORDC Jack
DISPLAY
GPUIntel® Graphics
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, Co-lay eDP)
Type-C DP1 x Type-C DP1.4 (Max Resolution: 4096 x 2160@60Hz)
DP1 x DP1.4 (Max Resolution: 4096 x 2160@60Hz)
HDMI1 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 4 Displays
AUDIO
CODECRealtek Audio Codec
COMBO1 x Internal Header
AMPLIFIER3W
LAN
ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I226-LM 2.5GbE
USB PORT
USB1 x USB 3.2 Gen 2x2 Type-C (20Gbps)
3 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
Internal Header for 4 x USB 2.0
SERIAL PORT
COMInternal Header for 4 x RS-232/422/485
INTERNAL I/O
GPIO8-Bit
SMBUSYes
I2CYes
FAN1 x 4-pin Connector for CPU Fan (PWM Mode)
FRONT PANELHDD Active LED
Power LED
Power On/Off
Reset
ADDITIONAL1 x Chassis intrusion
1 x AT/ATX Mode Selection
STORAGE
SATA1 x SATA III
1 x SATA Power Connector
RAIDRAID 0/1
EXPANSION
M.21 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi
1 x B-Key 3042/3052 (USB 3.2/PCIe 3.0 x2)
1 x M-Key 2242/2280 (PCIe 4.0 x4 / SATA III) Support NVMe
SIM1 x Nano SIM Card Slot
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A
