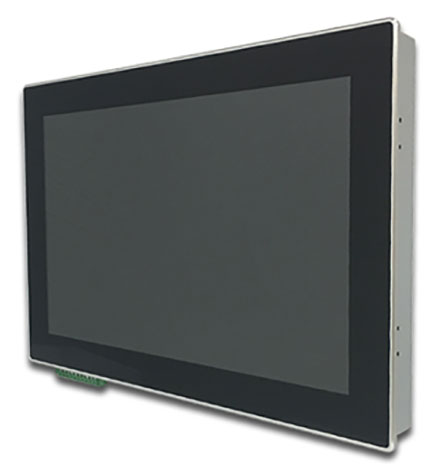

Mitac P100-10AS [Intel N4200] 10.1" Panel PC (1280x800, Multi-Touchscreen, PD10AS 3.5-SBC, IP65 Front, Fanless)

Mitac P100-10AS [Intel N4200] 10.1" Panel PC (1280x800, Multi-Touchscreen, PD10AS 3.5-SBC, IP65 Front, Fanless)
  • 1280x800 Multi-Touchscreen !
  • Fanless ! IP65 Front !
  • Intel Apollo Lake !
  • 2x LAN, 2x COM !

P100-10AS is a 10.1 inch all in one panel pc system with Intel Apollo Lake Celeron based platform for power-efficiency and fanless condition. For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front. All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.



Share

898.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
LCD
Display Type 10.1" TFT-LCD
Max. Resolution 1280 x 800
Max. Colors 16.7M (8 bit/color)
Luminance 400 cd/m2
Viewing Angle 170°(H), 170°( V)
LED Backlight (Hours) 30,000
TOUCH SCREEN
Type P-CAP / resistive
Touch Screen True-flat 10 points / single point
SYSTEM (Mitac PD10AS 3.5-SBC Mainboard)
Processor Intel® Apollo Lake N4200 Processor
Option: N3350
Chipset Intel® SoC integrated
System Memory DDR3L 1866, 204-pin SO-DIMM x 1, Max. 8 GB (Non-ECC)
Ethernet Intel® I210 Giga LAN + I210 Giga LAN
I/O Port DC in terminal block x 1
USB3.0 x 4
RS232 x 2
RJ45 x 2
VGA x 1
HDMI x 1
8bit GPIO terminal block x 1
Watchdog Timer 1~255 steps by software program
Storage Disk Drive SATA 2.5” HDD/SSD bay x 1
Expansion Slot 1 x PCI Express Full Mini Card slot (USB / PCIe / SATA)
1 x M.2 2230 E key(PCIe / USB)
Stereo Speaker -
OS Support Windows 10 64bit, Linux (support by request)
POWER REQUIREMENT
Power Input DC 8~24V
Power Adapter AC to DC, DC19V 65W adaptor
MECHANICAL
Mounting VESA 75/Stand
Dimension 178 x 260 x 46.5 (mm)
Weight TBD
ENVIRONMENTAL
Operating Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Storage Humidity 10% ~ 95% @40°C non-condensing
Vibration Resistance Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Shock Resistance Operating Random Vibration Test 5 ~ 500Hz; 2Grms @with SSD, follow IEC 60068-2-64
EMC CE, FCC Class A
Front Panel Protection IP65 Compliant
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
