AVerMedia NX213B BOX PC (NVIDIA Jetson Xavier 8GB / 8x POE)

AVerMedia NX213B BOX PC (NVIDIA Jetson Xavier 8GB / 8x POE)
3D 360° View
  • NVIDIA !
  • 9x GPIOs !
  • 8x POE LAN !

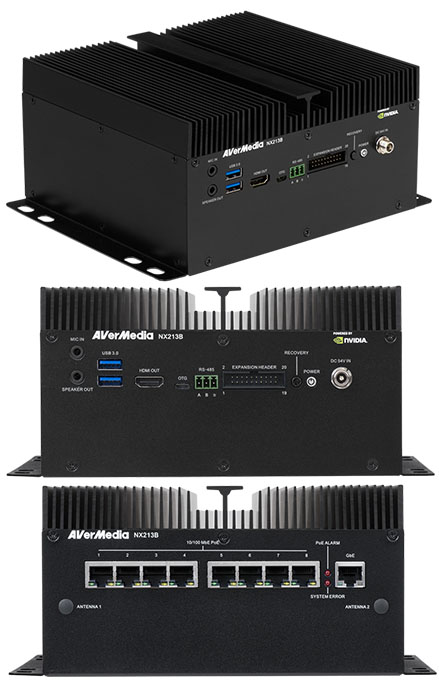

AVerMedia’s AVerAI NX213B Box PC of NVIDIA® Jetson Xavier™ NX is designed as an A.I. NVR (Network Video Recorder) for intelligent surveillance system.
This product provides 8-channel PoE (PSE) ports for IP cameras, a SATA port for storage, 1x mPCIe, 2x USB 3.0 , 1x microphone input, 1x speaker output, 1x RS-485 and 20-pin expansion header (I2C, SPI, UART, I2S), 1x HDMI 2.0 out. NX213B can operate in the temperature range from 0°C ~ 60°C (without HDD).
Benefiting from the Jetson Xavier™ NX and DeepStream SDK, it can simultaneously decode and analyze 8-channel 1080p60 IP camera videos.

  • Embedded NVIDIA® Jetson Xavier™ NX module< [more]

    Share

1198.00 EUR
incl. 19% VAT, plus shipping
In Stock (13 pcs)

Add to cart

AVerMedia’s AVerAI NX213B Box PC of NVIDIA® Jetson Xavier™ NX is designed as an A.I. NVR (Network Video Recorder) for intelligent surveillance system.
This product provides 8-channel PoE (PSE) ports for IP cameras, a SATA port for storage, 1x mPCIe, 2x USB 3.0 , 1x microphone input, 1x speaker output, 1x RS-485 and 20-pin expansion header (I2C, SPI, UART, I2S), 1x HDMI 2.0 out. NX213B can operate in the temperature range from 0°C ~ 60°C (without HDD).
Benefiting from the Jetson Xavier™ NX and DeepStream SDK, it can simultaneously decode and analyze 8-channel 1080p60 IP camera videos.

  • Embedded NVIDIA® Jetson Xavier™ NX module
  • 8x 10/100 MbE with PoE
  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI output
  • 20 pins with 1x UART, 2x I2C, 9x GPIOs
  • 1x RS-485 (3 pins), 1x Micro-B USB 2.0 for recovery
  • 1x mPCIe (Host Interface: USB 2.0)
  • Operating temperature: 0°C ~ 60°C (without HDD, with No-Air-Flow)
  • Dimension: W:190mm x L:175mm x H:80mm (W:225mm with mounting ears)




Model NX213B
Type Box PC
NVIDIA GPU SoC Module Compatibility NVIDIA® Jetson Xavier™ NX module
Networking 1x GbE RJ-45 8x 10/100 MbE RJ-45 with PoE (Max for the first 4 ports is 15.4W and total power budget is 100W)
Display Output 1x HDMI 2.0a/b Type-A supports maximum resolution 3840x2160 at 60Hz
Temperature Operating Temperature 0°C ~ 60°C Storage Temperature -40°C ~ 85°C Relative Humidity 40 °C @ 95%, Non-Condensing
USB 1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A (USB 3.2 Gen1 x 1)
Storage 16GB e.MMC v5.1
GPIO Expansion 1x 3.3V UART, 2x I2C, 9x GPIOs
Input Power 54V/2.78A
Buttons Power and Recovery Button (each with a RGB tri-color LED)
RTC Battery Support RTC battery and Battery Life Monitoring by MCU
Chassis Dimension/ Weight W:190mm x L:175mm x H:80mm (W:225mm with mounting ears) Weight: 4 Kg
Certifications CE, FCC,KC
Data sheet Download (PDF)
Data sheet Print view
Datasheet Download (PDF)
Manual Download
System installation SSD Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Nvidia CUDA Installation
Installing Jetson software have 2 method. 1. Download and Launch NVIDIA SDK Manager : https://docs.nvidia.com/sdk-manager/download-run-sdkm/index.html NVIDIA SDK Manager to install Jetson software method : https://docs.nvidia.com/sdk-manager/install-with-sdkm-jetson/index.html 2. Commandline method : $ sudo apt update && apt depends nvidia-jetpack | awk '{print $2}' | uniq | xargs -I {} bash -c "sudo apt clean ; sudo apt install -y {}"
