AVerMedia EN713-AAE9-1PC0 BoxPC (NVIDIA Jetson Nano)

PRODUCT IS CURRENTLY NOT AVAILABLE !

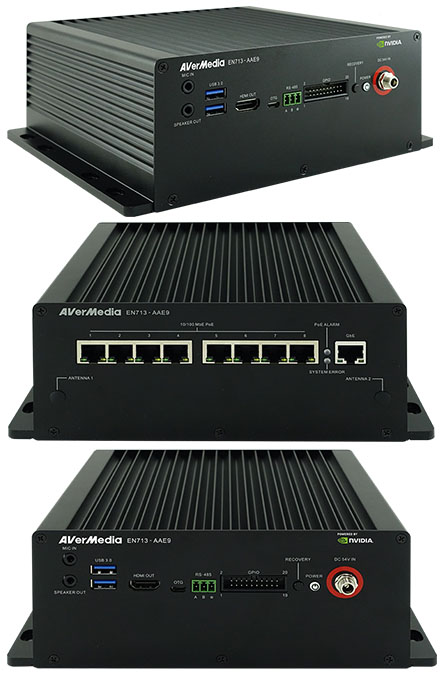

AVerMedia EN713-AAE9-1PC0 BoxPC (NVIDIA Jetson Nano)
  • 5x GPIOs !
  • NVIDIA !

  • Embedded NVIDIA® Jetson Nano™ (version B01) module
  • 8x 10/100 MbE with PoE
  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI output
  • 20 pins with 1x UART, 2x I2C, 5x GPIOs
  • 1x RS-485 (3 pins), 1x Micro-B USB 2.0 for recovery
  • 1x mPCIe (Host Interface: USB 2.0)
  • Operating temperature: 0°C ~ 60°C (without HDD)
  • Dimension: 190mm x 175mm x 80mm


AVerMedia’s AVerAI EN713-AAE9-1PC0 Box PC of NVIDIA® Jetson Nano™ is designed as an A.I. NVR (Network Video Recorder) for intelligent surveillance system.
This product provides 8-channel PoE (PSE) ports for IP cameras, a SATA port for storage, 1x mPC [more]

Share

  • Embedded NVIDIA® Jetson Nano™ (version B01) module
  • 8x 10/100 MbE with PoE
  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI output
  • 20 pins with 1x UART, 2x I2C, 5x GPIOs
  • 1x RS-485 (3 pins), 1x Micro-B USB 2.0 for recovery
  • 1x mPCIe (Host Interface: USB 2.0)
  • Operating temperature: 0°C ~ 60°C (without HDD)
  • Dimension: 190mm x 175mm x 80mm


AVerMedia’s AVerAI EN713-AAE9-1PC0 Box PC of NVIDIA® Jetson Nano™ is designed as an A.I. NVR (Network Video Recorder) for intelligent surveillance system.
This product provides 8-channel PoE (PSE) ports for IP cameras, a SATA port for storage, 1x mPCIe, 2x USB 3.0 , 1x microphone input, 1x speaker output, 1x RS-485 and 20-pin expansion header (I2C, SPI, UART, I2S), 1x HDMI 2.0 out. EN713-AAE9-1PC0 can operate in the temperature range from 0°C ~ 60°C (without HDD).
Benefiting from the Jetson Nano™ and DeepStream SDK, it can simultaneously decode and analyze 8-channel 1080p30 IP camera videos.



Model EN713
Type Box PC
NVIDIA GPU SoC Module Compatibility NVIDIA® Jetson Nano™ (version B01) module
Networking 1x GbE RJ-45 8x 10/100 MbE RJ-45 with PoE (Max for the first 4 ports is 15.4W and total power budget is 90W)
Display Output 1x HDMI 2.0a/b Type-A supports maximum resolution 3840x2160 at 60Hz
Temperature Operating temperature -10°C~60°C (without HDD) Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
USB 1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A (USB 3.2 Gen1 x 1)
Storage 16GB e.MMC v5.1
RS-485 1x RS-485 Pluggable Terminal Block (3 pins)
SATA Rev. 3.1 1x SATA Rev. 3.1
Audio 1x Mic-in, 1x Speaker-out
Antenna 2x SMA female connector (Optional)
Expansion Header 1x 3.3V UART, 2x I2C, 5x GPIOs
User Expansion 1x mPCIe (IEEE 802.11a/b/g/n/ac dual-band 2x2 MIMO (Optional)) (Host Interface: USB 2.0)
Input Power 54V/2.78A
Buttons Power and Recovery Button (each with a RGB tri-color LED)
RTC Battery Support RTC battery and Battery Life Monitoring by MCU
Chassis Dimension/ Weight W:190mm x L:175mm x H:80mm (W:220 mm with mounting ears) Weight: 2.75 Kg
Certifications CE, FCC, KC
Data sheet Download (PDF)
Data sheet Print view
Datasheet Download (PDF)
Manual Download
