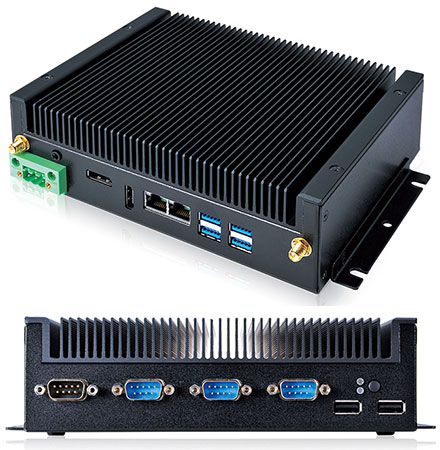

Mitac S310-11KS (Intel Kabylake-U i5-7300U 2x 3.5Ghz, 2x Gigabit LAN, 3x RS232, GPIO) [FANLESS]

Mitac S310-11KS (Intel Kabylake-U i5-7300U 2x 3.5Ghz, 2x Gigabit LAN, 3x RS232, GPIO) [<b>FANLESS</b>]
  • Intel Kabylake-U !
  • 2x Gigabit LAN !
  • Fanless !
  • 3x RS232 !

S310-11KS is a fanless box pc, powered by the 7th gen Kabylake-U performanceenhanced processor. The whole system is 1.5 liter size but still with versatile I/O aiming to adapt it in different environments and wide applications.

Long term availability until at least 2023 !

For a full PC you need in addition :
- mSATA SSD oder 2.5" HDD/SSD
- RAM



Share

1119.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
SYSTEM
CPU 7th Generation Kabylake Intel® Core™ i ULV Processor
(Default: i3-7100U; Compatible with i7-7600U, i5-7300U, Celeron 3965U)
Option: 6th Generation Skylake Intel® Core™ i ULV Processor
(Compatible with i7-6600U, i5-6300U, i3-6100U, Celeron 3955U)
CHIPSET Intel® SoC integrated
SYSTEM MEMORY DDR4 2133/2400, 260-pin SO-DIMM x 2, Max. 32 GB (Non-ECC)
GRAPHICS Intel® HD Graphics
DISPLAY INTERFACE DP, HDMI
STORAGE SLOT 2.5 HDD/SSD x 1 (Default w/ SATA and SATA Power Cable in Accessories)
mSATA x 1
ETHERNET Intel® I219LM Giga LAN + I211AT Giga LAN
AUDIO Realtek ALC283
I/O CHIPSET Nuvoton NCT6104D
TPM Nuvoton NPCT650ABCYX TPM2.0
EXPANSION SLOT Storage: PCI Express Full-Length Mini Card slot (USB / PCIe / SATA)
Wireless: M.2 2230 E key (PCIe / USB)
FRONT I/O GPIO x 8 (DB9 Connector)
RS-232 x 2
RS-232/422/485 x 1
USB 2.0 x 2
Power Button, Power LED, HDD LED
REAR I/O DC-in x 1
Audio Combo Jack (Mic-in and Line-out) x 1
DP x 1
HDMI x 1
RJ-45 x 2
USB 3.0 x 4
SMA Antenna (Option for WiFi function)
H/W MONITOR Temperature Monitor, Voltage Monitor
WATCHDOG TIMER 1~255 Steps by Software Program
INDICATOR Power LED, HDD LED
POWER REQUIREMENT
POWER INPUT 8~24V Wide Rage DC-in Jack Connectivity (Default)
8~24V Wide Rage DC Input w/ Terminal Block Connectivity (Optional)
POWER ADAPTER AC to DC, DC19V/ 3.4A, 65W adaptor
MECHANICAL
THERMAL DESIGN Fanless
MOUNTING VESA / Wallmount Kit (Default in Accessories)
DIMENSIONS (W X D X H) 7.4” x 5.8” x 2.2” (189.0mm x 147.4mm x 55.0mm)
MATERIAL Top cover: Aluminum Alloy , Bezel and chassis: Steel
ENVIRONMENTAL
OPERATING TEMPERATURE -10~50°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM)
0~40°C with 0.7m/s Air Flow (w/ Standard Temp.)
STORAGE TEMPERATURE -20~80°C
OPERATING HUMIDITY 10%~90% (Non-condensing)
VIBRATION RESISTANCE 5Hz~500Hz/ 2Grms/ 3Axis (Non-operating)
SHOCK RESISTANCE 120G, 2ms Duration (Non-operating)
CERTIFICATION CE & FCC
OS
OS SUPPORT KBL-U: Windows® 10, Linux support by request
SKL-U: Windows® 10, Windows® 8.1, Windows® 7, Linux support by request
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Specifications Download (PDF)
MiAPI Download
