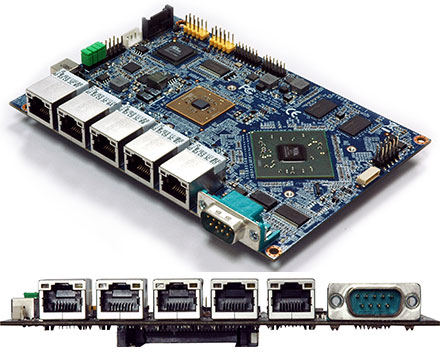

VIA VB9001 3.5-SBC (1.06GHz VIA Eden X1, 1GB RAM, 5x Gigabit LAN) [FANLESS]

VIA VB9001 3.5-SBC (1.06GHz VIA Eden X1, 1GB RAM, 5x Gigabit LAN) [<b>FANLESS</b>]
  • 1GB DDR3 onboard !
  • 5V DC Input !
  • 5x RTL8111G !
  • 3.5" SBC !

The VIA VB9001 3.5” SBC combines the fanless 1.06GHz VIA Eden X1 processor with rich connectivity features including five Gigabit Ethernet ports, providing an ideal platform for network security, distributed control system (DCS) and monitoring applications.

Hardware
Based on a highly compact 3.5” SBC form factor measuring just 14.6cm x 10.2cm, the VIA VB9001 includes 1GB DDR3 SDRAM onboard and features a unique set of I/O and connectivity options ideal for high-speed M2M and IP camera applications, including two USB 2.0 ports, five Gigabit Ethernet ports, 1 COM port, as well as onboard pin-headers for VGA and DIO (4 GPI + 4 GPO). Storage options includ [more]

Share

269.00 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days
Add to cart

The VIA VB9001 3.5” SBC combines the fanless 1.06GHz VIA Eden X1 processor with rich connectivity features including five Gigabit Ethernet ports, providing an ideal platform for network security, distributed control system (DCS) and monitoring applications.

Hardware
Based on a highly compact 3.5” SBC form factor measuring just 14.6cm x 10.2cm, the VIA VB9001 includes 1GB DDR3 SDRAM onboard and features a unique set of I/O and connectivity options ideal for high-speed M2M and IP camera applications, including two USB 2.0 ports, five Gigabit Ethernet ports, 1 COM port, as well as onboard pin-headers for VGA and DIO (4 GPI + 4 GPO). Storage options include one SATA connector and one CFast slot.

Software
The VIA VB9001 is compatible with Windows 7, Windows CE 5.0 and QNX. A wide range of software development tools are also available, including the VIA Smart ETK.

Expandability
In addition to its onboard pin headers, wireless connectivity can be added with the optional VIA EMIO-5531 USB Wi-Fi + Bluetooth module.

Applications
With its unique set of I/O and connectivity options including five Gigabit Ethernet ports, the VIA VB9001 is ideally suited for edge gateway applications as well as for small scale multiple IP camera security monitoring scenarios.

Model NameVB9001
Processor1.06GHz VIA Eden X1 (Fanless)
ChipsetVIA VX900 Media System Processor
BIOSAMI Aptio UEFI BIOS, 8Mbit Flash memory
System Memory1GB DDR3 SDRAM onboard
Storage1 SATA connector
1 CFast slot
GraphicsIntegrated VIA C-9 HD DX9 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding acceleration
LAN5 Realtek RTL8111G PCIe Gigabit Ethernet controllers
Onboard I/O1 SATA connector
1 SATA power connector
1 VGA pin header
2 USB 2.0 pin headers for 4 ports
1 Digital I/O pin header (4 GPI + 4 GPO)
1 Fan pin header
Back Panel I/O1 COM port
5 Gigabit Ethernet ports
1 DC-in jack
Power Supply5V DC-in
Operating SystemWindows 7, Windows CE 5.0, QNX
VIA Smart ETKBIOS flash tool, Hardware monitor, Watchdog timer, GPIO
Operating Temperature0°C ~ 60°C
Operating Humidity0% ~ 95% (non-condensing)
Form Factor3.5" SBC (14.6cm x 10.2cm, 5.7’’ x 4’’)
ComplianceCE, FCC
Data sheet Download (PDF)
Data sheet Print view
