Jetway NFS5Z-IH81 (Intel H81)

Jetway NFS5Z-IH81 (Intel H81)

  • 4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor
  • All Solid Capacitors, Enhanced 10KV ESD Protection
  • Supports DDR3/DDR3L-1600 SO-DIMM up to 8GB Total
  • Supports up to 2 Displays, VGA Supports Dummy Display/Headless
  • 12 * Serial Ports (1 * External, 11 * Internal)
  • ECO-design for EuP/ErP


Share

219.00 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)
Add to cart
RAM :

SSD (mSATA):

Build/Install:

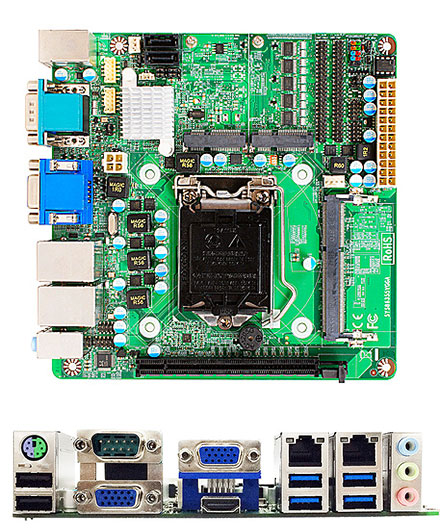

Jetway NFS5Z-IH81 Mini-ITX Motherboard
Processor4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor
Socket LGA 1150 (Formerly Haswell)
ChipsetIntel H81 (AKA Lynx Point)
Memory1 x 204-pin SODIMM DDR3/DDR3L-1600 (up to 8 GB)
GraphicsRequires Intel Core processor with Intel HD Graphics
AudioRealtek ALC662 5.1 Channel Audio
LAN2 x Realtek RTL8111G Gigabit LAN
Storage2 x SATA3 6Gb/s Ports
1 x mSATA/mini-PCI Express Combo Slot (Full-size)
Super IOFINTEK F81866A
Back Panel Connectors
1 PS/2 Keyboard/Mouse Combo Port
2 USB 2.0
1 Serial Port (RS232/422/485, +5V/+12V)
2 VGA
1 HDMI
4 USB 3.0
2 RJ45 LAN (10/100/1000)
3 3.5mm Audio
Onboard I/O Connectors
1 PCI-E 3.0 x16 Slot (by 16-lane)
1 mSATA/mini-PCI Combo Slot (Full-size)
1 Mini-PCI Express Slot (Full-size)
2 SATA3 6Gb/s Connectors
2 USB Pin Headers for up to 4 additional USB 2.0 Ports
11 Serial port headers (10 * RS232, 1 * RS232/422/485)
1 GPIO header
1 AT/ATX power mode jumper
1 Chassis Intrusion header
1 SIM Card Slot (Bottom)
1 Front Panel header
1 9-pin Front Audio header
1 8-pin LAN activity header
3 Fan headers
1 24-pin ATX Power Connector
1 4-pin 12V ATX Power Connector
Market Segments Supported
√ Digital Security & Surveillance
√ Digital Signage
√ Gaming
√ Industrial Automation/Control
√ Medical
√ Retail (POS/Kiosk/ATM)
√ Networking/Storage Server/Mail Server/Print Server
√ Thin Client
√ HTPC
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
