Mitac PD10TI (Intel D2550MUD2) (Intel Atom 2x 1.86Ghz CPU, TPM, DVI) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !

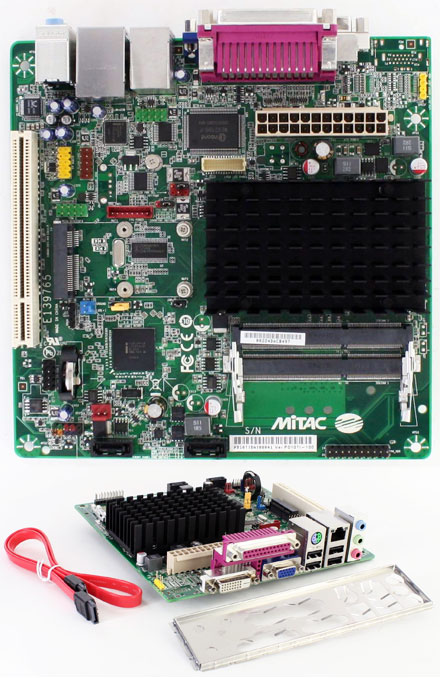

Mitac PD10TI (Intel D2550MUD2) (Intel Atom 2x 1.86Ghz CPU, TPM, DVI) [<b>FANLESS</b>]
3D 360° View
  • Mini-PCI-Express !
  • 2x 1.86Ghz !
  • Hyper-Threading !
  • TPM Header !

This board is produced by MITAC, the OEM producer of Intel D2550MUD2. This board is identical with Intel D2550MUD2 (even BIOS-compatible) and available until at least 2017.

- Dual-core Atom with Hyper Threading
- DVI-I for full dual-independent display support
- 3 serial ports & headers for multiple peripherals
- Boards are suitable for other devices; ATM, Kiosk, POS, etc.



Share

CPU Intel Atom D2550 2x1.86GHz
Graphics Intel GMA
Formfactor ITX (17x17cm)
RAM 2x SO-DDR-III
Audio 5.1 Channel HD Audio
Base Intel ITX
USB 7x USB 2.0
Firewire --
IDE/SATA 2x SATA
LAN 1x 10/100/1000
Parallel 1x
Serial 3x
yes TV-Out
yes PCI
yes Mini-PCI
no IDE
yes DVI
yes 800x480 Resolution
yes Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash
Name Mitac PD10TI (Intel D2550MUD2)
Form Factor Mini-ITX Mainboard
CPU Intel® Atom™ D2550 (2x 1.86GHz)
1MB Cache, With Hyper-Threading
Chipset Intel NM10 Express
Graphics VGA + DVI-D
Memory 2x SO-DDR3 800/1066, 4GB max, Single channel
Power 24 Pin ATX
LAN 1x Intel 10/100/1000 MBit
Connectors (rear) - 4x USB 2.0
- 1x LAN RJ-45
- 3x Audio
- 1x PS/2
- 1x LPT
- 1x DVI-D
- 1x VGA
Audio 5.1 Channel HD Audio
Connectors (internal) - 2x SATA-II (3GB/s)
- 3x USB 2.0
- 1x PCI
- 1x Mini-PCIe
- 2x RS232
- Front Audio
- 1x TPM
- 1x SPDIF
Included - Mitac PD10TI (D2550MUD2) Mainboard (with 2x 1.86Ghz Atom CPU)
- I/O ATX rear plate
- 1x SATA cable
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Specifications Download (PDF)
Manual [EN] Download
Drivers Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 1 ratings
4 von 5 Sternen from wpfundstein-it am 09.07.2018 | | See all my comments

wie immer alles gut

Intel Cedar Trail chipset only supports Windows 7 - 32 bit
Intel has not released graphics card driver for Windows 64 bit. It is recommended installing Windows 7 - 32bit.
