- Intel Q470 Chipset !
- Intel vPro tech support !
- Support triple display !
- ATX Powered !
incl. 19% VAT, plus shipping
Available in 1-3 days

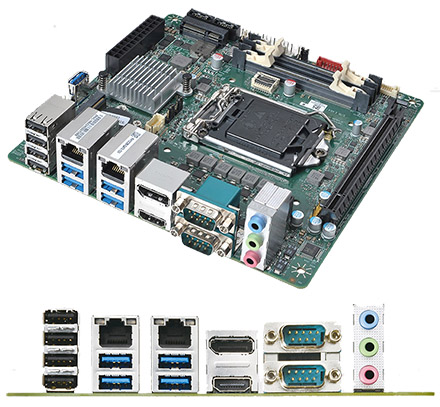

|MECHANICAL||FORM FACTOR||Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm)|
|SYSTEM||PROCESSOR||10th Gen Intel® Comet Lake LGA1200 Socket Processor / 10core TDP Max 35W / 8ccore TDP 65W / (ATX support 6core 95W)|
|CHIPSET||Intel® Q470 (Support RAID 0 / 1 / 5, VPro) / colay H420E|
|SYSTEM MEMORY||DDR4 2933/2666/2400MHz / 2 x 260-pin SO-DIMM / Max. 64 GB (Non-ECC)|
|GRAPHICS||Intel® HD Graphics|
|ETHERNET||Intel® I219-LM Giga LAN + Intel® I210-AT Giga LAN|
|AUDIO||Realtek® ALC662 / ALC888|
|I/O CHIPSET||Nuvoton NCT6126D(eSPI)|
|TPM||Nuvoton NPCT750AAAYX TPM2.0 (Optional)|
|EXPANSION SLOT||1 x M.2 2230 E key(PCIe / USB) / PCIe 3.0 X16 slot / M.2 2242 / 2280 M key (PCIe, SATA) / Mini PCIe Full size (PCIe / USB / SATA)|
|BIOS||AMI BIOS / 256 Mbit SPI|
|H/W MONITOR||Temperature Monitor / Voltage Monitor / Fan Monitor|
|WATCHDOG TIMER||1~255 steps by software program|
|SMART FAN CONTROL||CPU Fan / System Fan|
|HDMI||Up to 4K (4096 x 2160) @30 Hz|
|DISPLAYPORT||Up to 4K (4096 x 2304) @60 Hz|
|LVDS||Up to 1920 x 1200 @60 Hz|
|eDP (Option)||Up to 4K (4096 x 2304) @60 Hz|
|REAR I/O||USB||4 x USB 2.0 / 4 x USB 3.2 Gen 2 (Q470)|
|DISPLAY I/O||1 x HDMI 1.4 / 1 x DisplayPort 1.2|
|AUDIO I/O||1 x Mic-in / 1 x Line-out / 1 x Line-in|
|LAN I/O||2 x RJ-45|
|SERIAL PORT||2 x RS232 (one support RS422,/485)|
|INTERNAL CONNECTORS||STORAGE||2 x SATAIII|
|USB||1 x USB 3.0 / 2 x USB 2.0|
|DISPLAY I/O||1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector|
|GPIO||1 x MiAPI Header (Programmable. Support 10-bit GPIO)|
|FAN||1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header|
|POWER||1 x ATX Power Connector / 1 x AT / ATX Mode Select Jumper / ATX 12V Power Connector (24-pin + 4-pin)|
|OTHERS||1 x CMOS Jumper / 1 x Front Audio Header (Mic-in & Line-out) / 1 x panel power select header / 1x buzzer header / 1 x SPDIF|
|POWER REQUIREMENT||POWER INPUT||ATX 24-pin + 4-pin|
|ENVIRONMENTAL||OPERATING TEMPERATURE||0 ~ 60°C (32 ~140°F)|
|STORAGE TEMPERATURE||-40 ~ 85°C (-40 ~185°F)|
|OPERATING HUMIDITY||10% ~ 95% R/H (Non-condensing)|
|CERTIFICATION||CE / FCC Class B|
|OS||OS SUPPORT||Windows® 10 64-bit / Linux (support by request)|
|PACKING LIST||PACKAGE||1 x Motherboard / 1 x 50 cm SATA Cable / 1 x Quick Installation Guide / 1 x I/O Bracket (Full Height)|
